The Chime way

Lead engineer & technical designer

The Chime Way is a public installation in San Leandro, California designed to pique curiosity and facilitate interaction disguised as merely a simple place to sit. It consists of a set of eight rocking chairs, each with a ratchet and cam mechanism connected to a hammer. With each rock, the visitor lifts the hammer until it reaches its apex, then drops and strikes a chime.

Located in a thoroughfare plaza, the installation gives people a reason to not only slow down and explore the space, but also to interact with one another to coordinate the chimes and help strangers discover how the seemingly static chairs are responsible for the reverberating tolls heard above.

The Chime Way is a project of the Exploratorium’s Studio for Public Spaces (SPS), which works in the public realm to create exhibits and environments that encourage play, exploration, creativity, and social connection.

As the lead engineer of the project, I worked with the architect and city representatives in developing a design with practicality, safety, and user experience in mind. These sketches were drawn by Josh Bacigalupi, the Exploratorium SPS architect.

During the design process, prototyping was done with both engineering function and user interaction as the main parameters of iteration.

An early prototype with a tuning fork design

Full scale mock up of the tuning fork design

Getting some feedback on interaction

Testing different seating types

Adjustable prototype of the rocking chair

Full scale mock up of the chime design with a functioning prototype of the striking mechanism

Some sketches of the mechanism, drawn by Adam Esposito

An early prototype of the striking mechanism, assembled by Adam Esposito

Assembling the arches and chimes

Dry run assembly of the arch, chime, and striking mechanism in the Exploratorium shop

Mallets, machined out of 2 inch diameter aluminum rod for weight, and covered with PVC tubing to achieve a soft strike as well as for weather and UV resistance

Glueing up the arm rests

The arm rests were constructed out of four CNC routed pieces, with slots to hold captured fastening nuts

The frames of the stainless steel seats

Glider mechanisms for all the rockers

Close up of the glider mechanism

Arches and shrouds for covering the striking mechanisms

Alignment jig for welding the arches

Bending the brackets that hold the chimes

I was also responsible for coordinating the fabrication and installation process. Larger fabrication such as the arches and concrete footings were done by outside vendors, while smaller parts and the majority of assembly were done in house.

The installation process took about seven days. One issue that arose during installation was when the city inspector came and requested additional safety features to prevent finger pinching at the rear of the seat mechanism. We tested a handful of ideas and ultimately decided to attach a rubber mud flap to cover the exposed part of the mechanism along with adding a warning label which we designed and laser etched.

First step of installation was to place the concrete footings

Attaching laser etched warning caution signs we designed after the city inspector requested better deterrence and prevention of finger pinching

Mudflap added to cover up the remaining exposed parts of the linkage to prevent fingers and limbs from reaching in

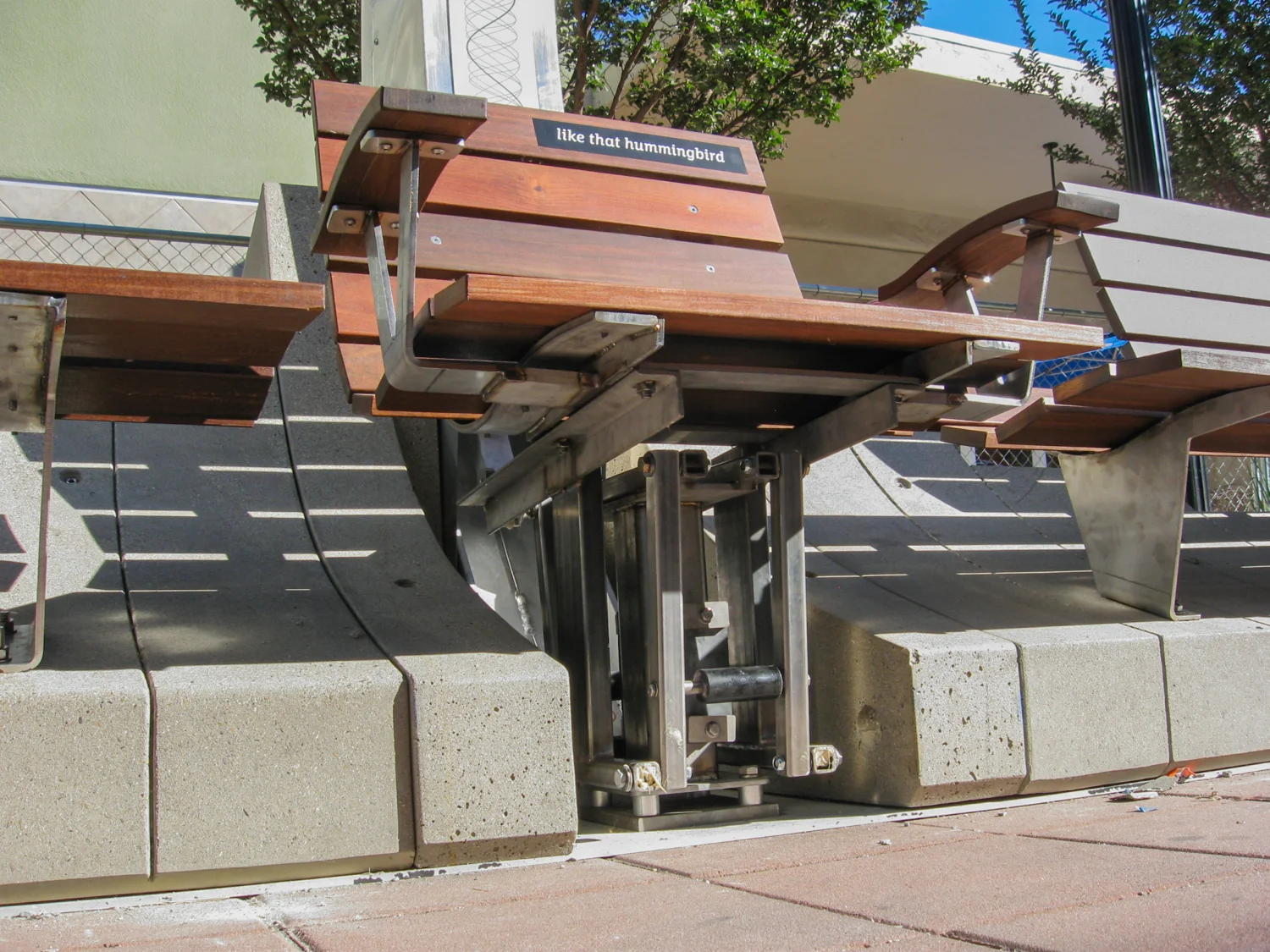

The seat mechanism installed before attaching the cover shroud

Seat and mechanism before adding the cover shroud

A video of the Chime Way in action, as well as a couple of timelapse videos of the installation process.

Most of the photos in the gallery above were taken by Gayle Laird of the Exploratorium. You can find her work here.

Photo by Emma Bailey of the Exploratorium

Big thanks to:

The rest of the Exploratorium SPS team: Shawn Lani, Steve Gennrich, Josh Bacigalupi, Becca Bartlett, Sue Pomon, Eileen Campbell, Adam Green, Adam Esposito, and Jesse Marsh.

Engineer, Adam Wong, who helped with the initial designs for the concrete slab foundation and chime mechanism.

Those who helped with in-house fabrication and assembly: SPS intern, Ian Meltzer; volunteer extraordinaire, Herb Masters; and our on-call techs, Dan Nachtrab and Mat Porkola.

Jeff Tiedeken who did much of the welding and fabrication for the seats.

Paul Troutman and crew for doing welding and fabrication on the arches as well as helping with the installation.

Universal Precast Concrete for fabricating the concrete footings.

Tony "Fingers" Rojas for his unmatched courier services.

Lars Halle, and the city of San Leandro.

Taqueria Los Pericos for their hospitality.
